Wireless: Manually Connect to Eduroam (Windows 10)




General Information

Before proceeding, make sure you have the latest Service Packs and Windows updates installed.  Also make sure your wireless adapter has the latest drivers installed. If your computer has a built-in wireless adapter, download the latest drivers from the computer manufacturer's website. If you have an external wireless adapter, download the latest drivers from the adapter manufacturer's website.  Information on Deleting a Wireless Network found here.


Manually Connect to Eduroam

1. Right click on the wireless icon, located at the bottom right hand side of your screen and select Open Network and Sharing Center.

Open Network and Training Center

2. Once the Network and Internet Settings window is open, select Network and Sharing Center at the lower part of the window.

network sharing select


3. Select Set up a new connection or network

Set up button


4. Select Manually connect to a wireless network, and click Next.

Manual connect option


5. Fill in the following wireless network settings for eduroam:

  • Network Name: eduroam
  • Security Type: WPA-2 Enterprise
  • Encryption Type: AES Encryption
  • Security Key: Leave this Blank
  • Start this Connection Automatically: CHECK This Box
  • Connect even if the Network is NOT Broadcasting: UNCHECK This Box

Connect screen


6. Click Change Connection Settings.

Change settings button


7. Switch to the Security tab and select Settings.

Settings tab

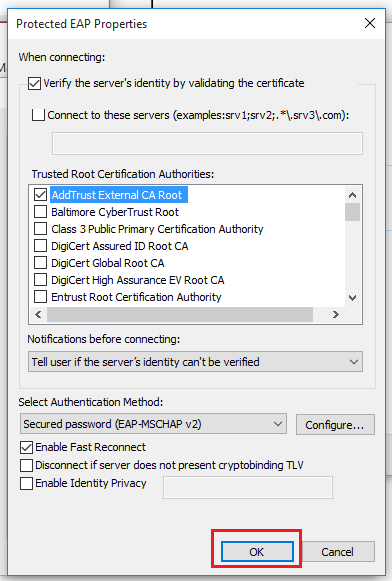

8. Check the box that says AddTrust External CA root.

Settings window with add trust certificate selected


9. Click Configure, and then uncheck the box in the window that pops up.

Clicking configure button at bottom of window, then uncheck the box


10. Click on the Advanced Settings button at the bottom.

The Advanced settings button in Network options window, at lower left


11. Check Specify authentication mode. Then, click the dropdown and make sure only User Authentication is selected.

User Authentication selected in the dropdown for authentication mode


12. Click the Save Credentials button, and then enter your credentials in the form of username@lsu.edu and myLSU password. You may then click OK on all remaining windows.

Entering credentials, with username including at L S U dot E D U, in the save credentials window


13. Click on the "wireless signal" icon, located at the bottom right hand side of your screen.

Wireless icon


14. Select eduroam | Connect. Login with your myLSU ID & myLSU Password.

  • If you do not enter your myLSU credentials in the form <myLSU ID>@lsu.edu, you WILL receive an error message.

eduroam connect secreen


15. You are now successfully connected to the LSU eduroam secure wireless network.
