Creating a New Configuration Item in Cherwell

Configuration Items (CIs) are single items contained in the Configuration Management Database. These items can be linked together to create a dependency map showing how changes can effect systems, services, or other CIs. The following steps are used to create a CI in Cherwell:

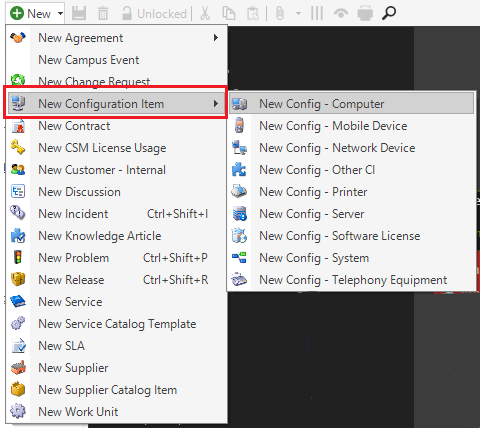

1. In the Main Menu, click New > New Configuration Item and select the type of configuration item to created.

New Configuration Items

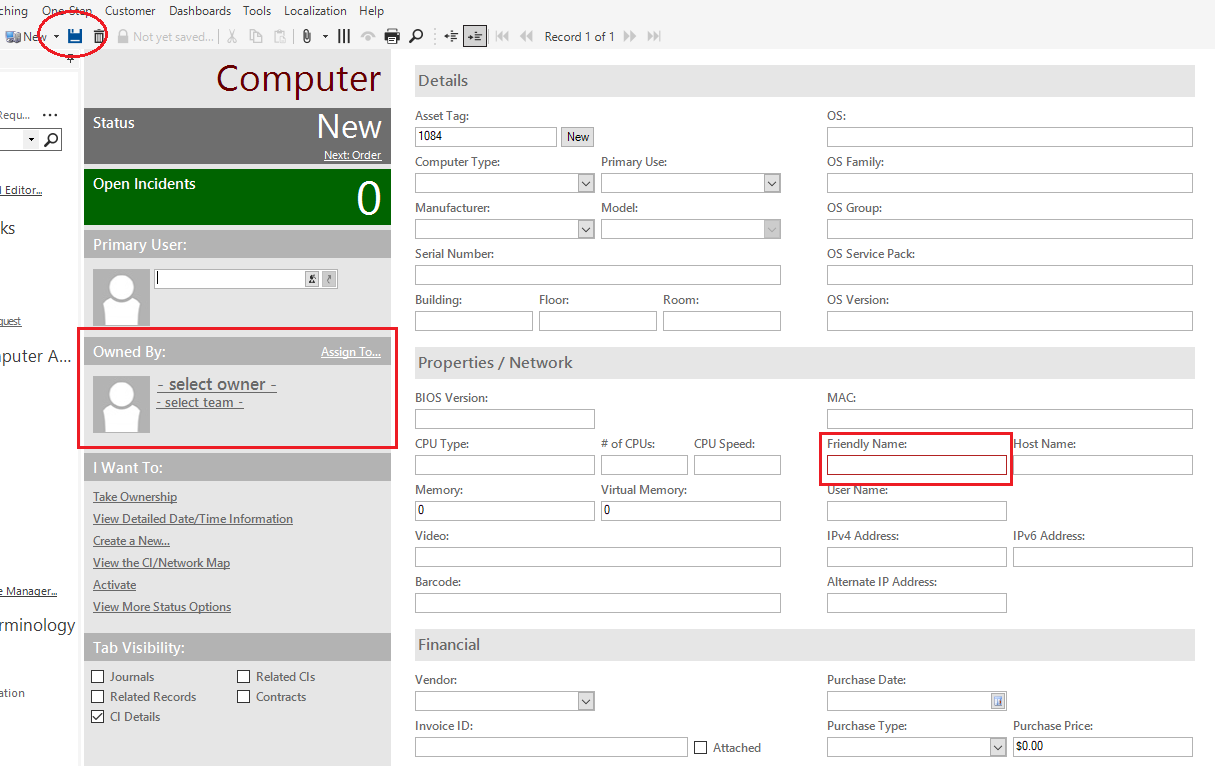

2. Enter the configuration item’s details in the form. Each type of Configuration Item will have its own set of relevant form fields. Select an owner/team, and fill in the required field Friendly Name. Please provide as much information as possible and/or necessary when completing other fields. When finished, click the Save icon at the top left.

Required Fields for an Example Configuration Item



3. Next, click the Next: Order link (in the grey Status box under New):

Click to Move to the Order Status



4. Then, click the Next: Mark as In Stock link in the same location:

Click to Move to the Mark as In Stock Status



5. Then, click the Next: Planned link in the same location:

Click to Move to the Planned Status



6. Then, click the Next: Activate link in the same location:

Click to Move to the Activate Status



7. The Configuration Item should now be at the Active status:

Active Status



8. Click the Home button to return to the main screen:

Home button
